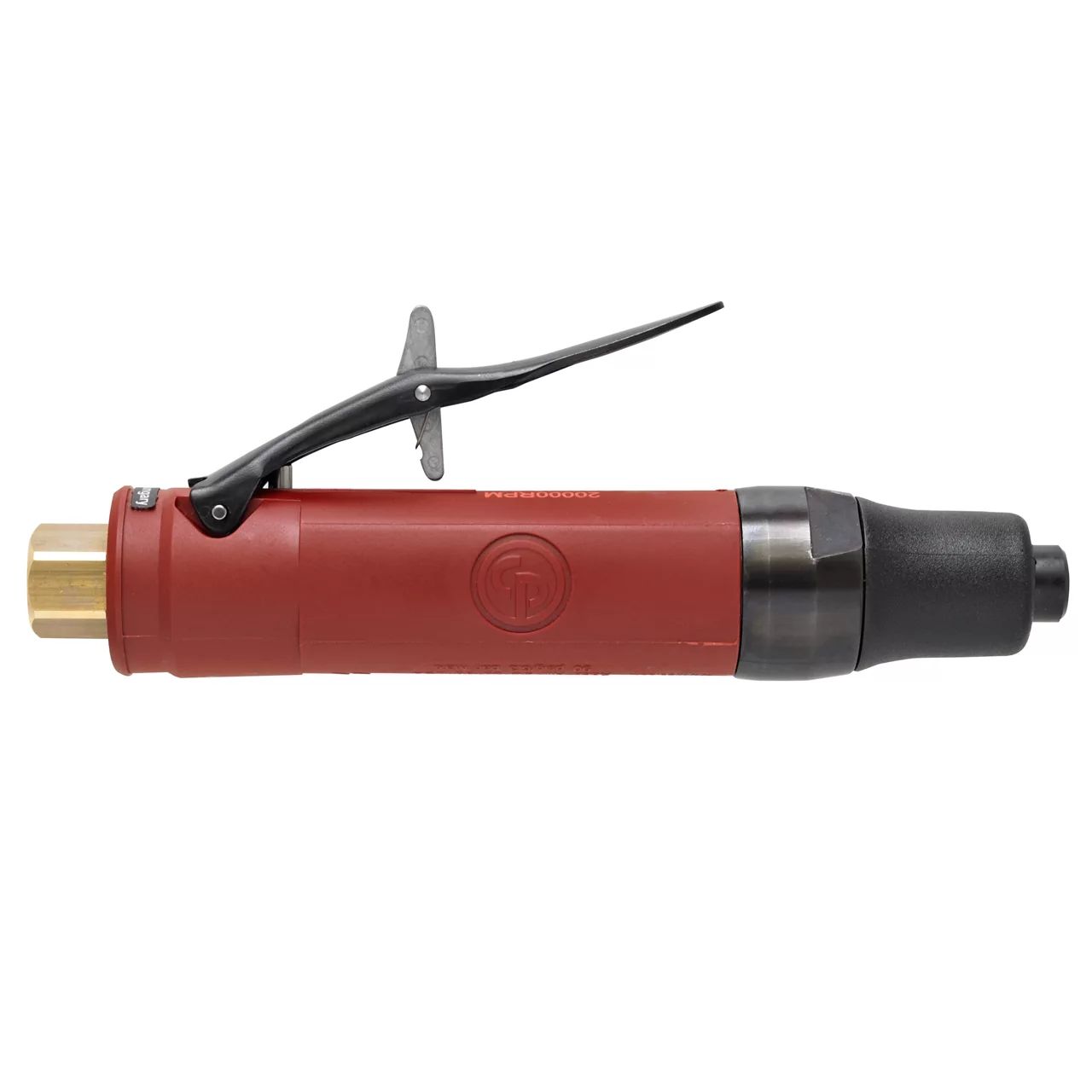

CP3019-31ES CNOMO -1/4"(6 mm) PNEUMATIC DIE GRINDER
The CP3019 Series - straight pneumatic Die Grinders, with a 1/4' (6.35 mm) collet capacity or CNOMO collet capacity consists of 17 models with 5 free speed options from 12,000 to 40,000 rpm and a straight or straight extended housing collet spindle. The powerful motor offers 0.5 hp (375 W) for optimum productivity in heavy applications such as deburring, die contouring, and light chamfering. A compact design and a simplified safety lever characterize the range.
Benefits
- Highest durability in demanding applications, up to 2,000 hours maintenance intervals
- Streamlined safety lever for operator safety
- Powerful 0.5 hp (375 W) governed motor ensures safety
- Compact body with an insulating composite over-housing for operator comfort and superior ergonomics
Features
- Compact body
- Insulating composite over-housing
- Streamlined safety lever
- Rear exhaust
- 6mm CNOMO collet
- Extended body
- 0.5 hp (375 W) governed motor
- 31,000 rpm free speed
Technical Specifications
| Collet max capacity | 6mm (only for Die Grinders) |
| Collet/Collet holder/Collet nut type | Cnomo type |
| Exhaust | Rear |
| Governor type | Ball |
| Main Material type | Aluminium, Composite over-sleeve |
| Rotative inlet | No |
| Spindle lock | No |
| Starting system | Safety lever |
| RPM | 31000 |
| Power | 0.5 Hp |
| Min Hose size | 5/16"/8mm |
| Air consumption | 282 L/min |
| Air inlet thread size | 1/4" |
| Length | 9.8"/249mm |
| Sound Pressure | 80db(A) |
| Sound power | 91db(A) |
| Collet size | 6mm |
| Brand | Chicago Pneumatic |
Chicago Pneumatic Die Grinders CP3019-31ES CNOMO Die Grinder CNOMO Collet Holder
Sku : 6151602230
