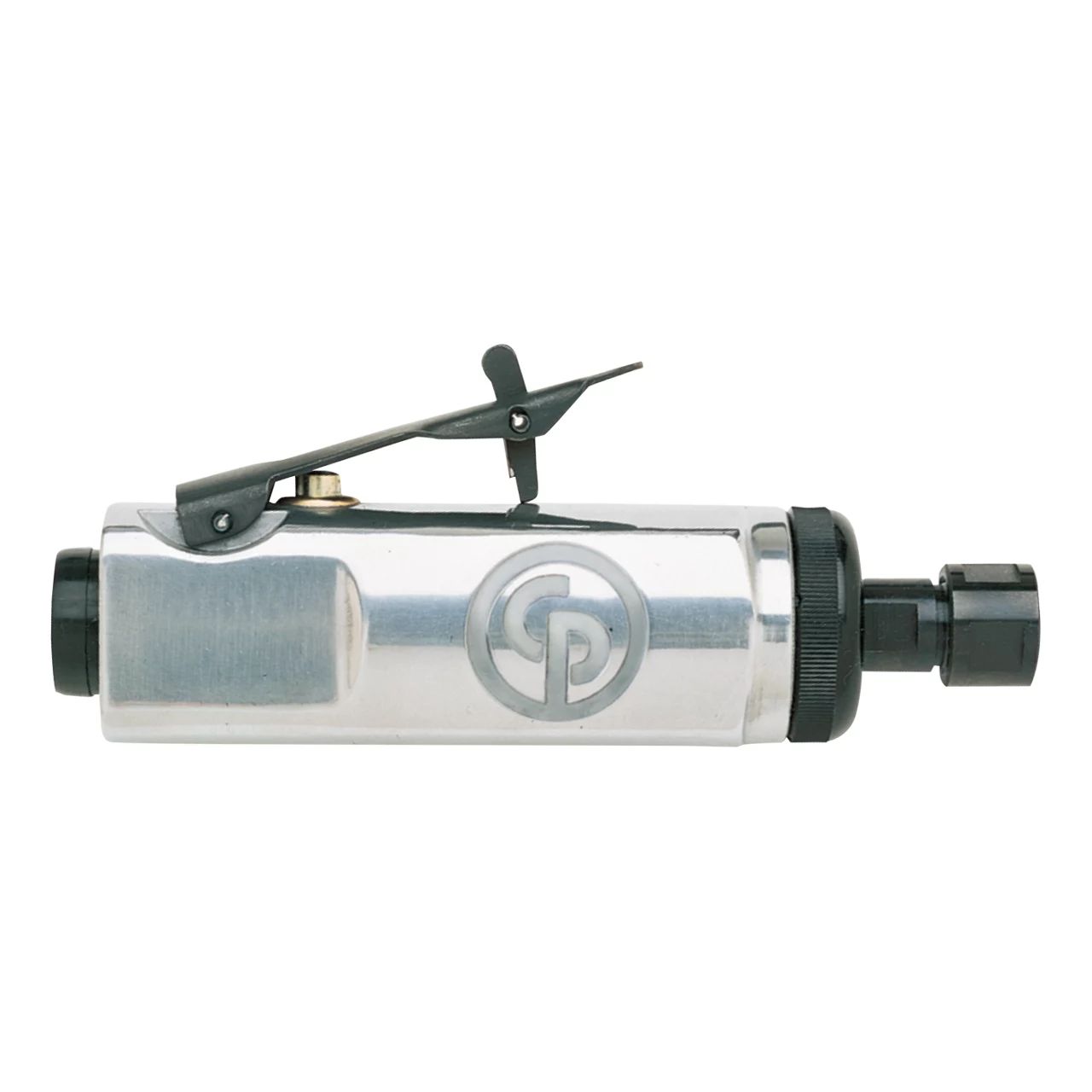

The CP860 Series, a 1/4' (6.35 mm) capacity die grinder with collet, features a compact or extended shaft to accommodate your most demanding accesses in general maintenance applications to keep your quality at the highest level. The motor is extremely powerful and reliable with 0.54 hp (400 W).
The CP860 Series, a 1/4' (6.35 mm) capacity die grinder with collet, features a compact or extended shaft to accommodate your most demanding accesses in general maintenance applications to keep your quality at the highest level. The motor is extremely powerful and reliable with 0.54 hp (400 W).
| # | Attribute | Value |
|---|---|---|
| 1. | RPM | 24000 |
| 2. | Power | 0.54 Hp |
| 3. | Min Hose size | 3/8"/10mm |
| 4. | Air consumption | 595 L/min |
| 5. | Air inlet thread size | 1/4" |
| 6. | Length | 5.75"/146mm |
| 7. | Sound Pressure | 92.5db(A) |
| 8. | Sound power | 103.5db(A) |
| 9. | Collet size | 6mm |
| 10. | brand | Chicago Pneumatic |
