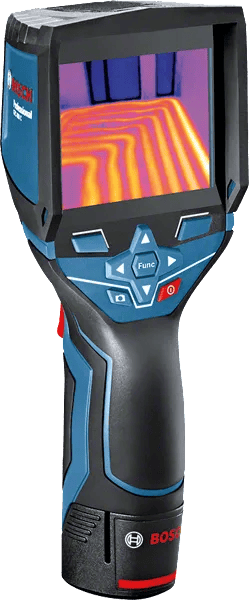

GTC 400 C Professional Thermo Camera
Immediate visualisation of temperature differences with smart documentation

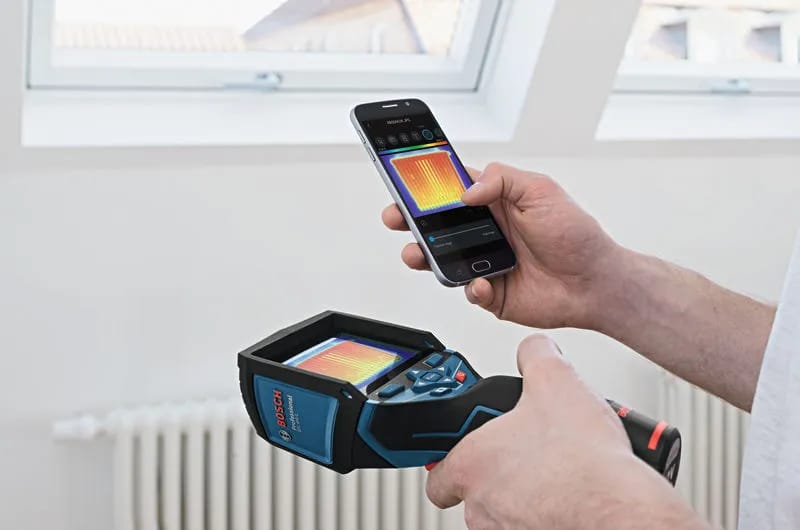

- Fast exchange of data and easy documentation of thermal images with the Bosch ThermalOn app
- Picture-in-picture technology overlays thermal and real images for easy-to-see localisation of the measurement
- Flexible battery system can be powered by a 12 V LI-ION battery or with standard alkaline batteries
Functions & Key Features
Equipment & Application

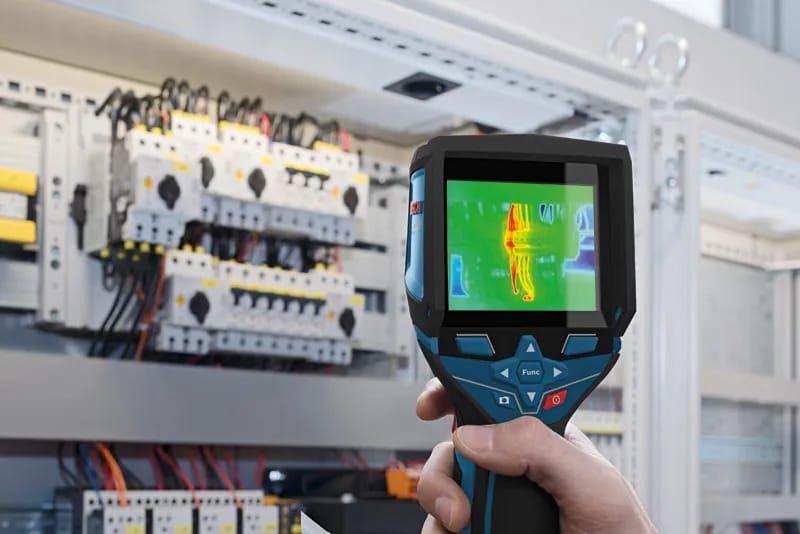

It is ideal for inspecting insulation, heating systems, heat flow, and for finding overheated parts.
Technical Data
| Battery voltage | 12.0 V |
| Measurement range | -10 °C to +400 °C |
| Measuring accuracy of IR | ±3.0 °C |
| Resolution | 0.1 °C |
| Thermal sensitivity (NETD) | <50 mK |
| Size of IR sensor | 160 Pixel x 120 Pixel |
| Number of measuring points | 19200 |
| Field of view (FOV) | 53° x 43° |
| Power supply and runtime | 4 x 1.5 V LR6 (AA), 1 x GBA 12V, 1 x GBA 10.8V |
| Frame buffer (number of images) | 500 |
| Memory type | Internal memory |
| File format of image | .jpg |
| Data transfer | MicroUSB Wi-Fi |
| Dust and splash protection | IP 53 |
| Weight | 0,540 kg |
| Size of display | 3,5" |
| Operating temperature | -10 – 45 °C |
| Storage temperature | -20 – 70 °C |
| Focus distance, minimum | 0.3 m |
| Measuring application | Thermal image |
| Brand | Bosch |
₹75,186.81 ₹100,000 (25% OFF)
