Bosch GDX 18V-285 Professional
- Convenient and saves time with single tool, GDX 2-in-1 tool holder for both screw-driving and bolting application
- Powerful bolting tool with 285 Nm torque performs bolting applications with ease; 2-Speed Selector. High speed for productivity, medium for delicate jobs
- Comfortable to use for long periods thanks to the ergonomic handle with Soft-grip and slim handle
Product Highlights
Whether you work outdoors or indoors, transporting and carrying multiple tools is a hassle. The 2-in-1 GDX 18V-285 keeps things simple, because for both screwdriving and bolting, you only need a single tool. This powerful tool produces 285 Nm torque and can perform bolting up to M18. The 2-speed selection allows you to choose the speed and torque best suited to your application.
Equipment & Application
The 2-in-1 GDX 18V-285 Impact screwdriver optimizes bolting performance on M8, M10, and M12 bolts with its powerful torque and speed selector. This tool can also be used for screwdriving applications with self-drilling screws with diameters of 4.2 mm and 4.8 mm in sheet metal, with wood screws with diameters of 4 mm, 5 mm, and 8 mm, as well as with M6, M8, and M10 lag screws.
Technical Information

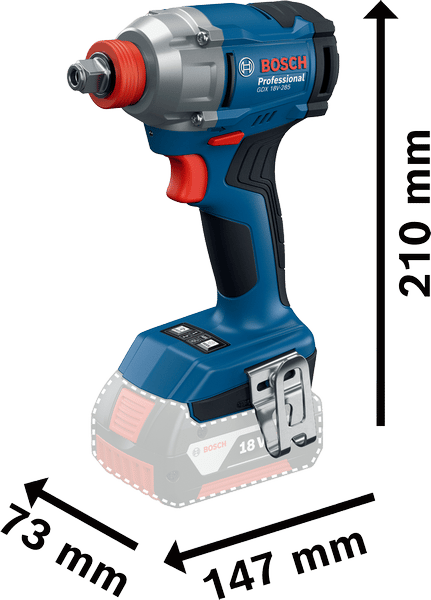

| Tool dimensions (width) | 73 mm |
| Tool dimensions (length) | 147 mm |
| Tool dimensions (height) | 210 mm |
| No-load speed | 0-2,000 rpm |
| Battery voltage | 18.0 V |
| Weight incl. battery | 1,5 kg |
| Tool holder | 1/2" square friction ring and thru hole 1/4'' Hex Uni |
| Breakaway torque, max. | 500 Nm |
| Torque adjustment range, min./max., 1st level | 0/200 Nm |
| Torque adjustment range, min./max., 2nd level | 0/285 Nm |
| No-load speed (1st level) | 0-2,000 rpm |
| No-load speed (2nd level) | 0-2,800 rpm |
| Torque settings | 2 |
| Weight excl. battery | 1.1 kg |
| Torque, max. | 285 Nm |
| Impact rate | 0-3,600 bpm |
| Impact rate (1st level) | 0-3,000 bpm |
| Impact rate (2nd level) | 0-3,600 bpm |
| Bolt size | M 8 - M 18 |
| Brand | Bosch |
